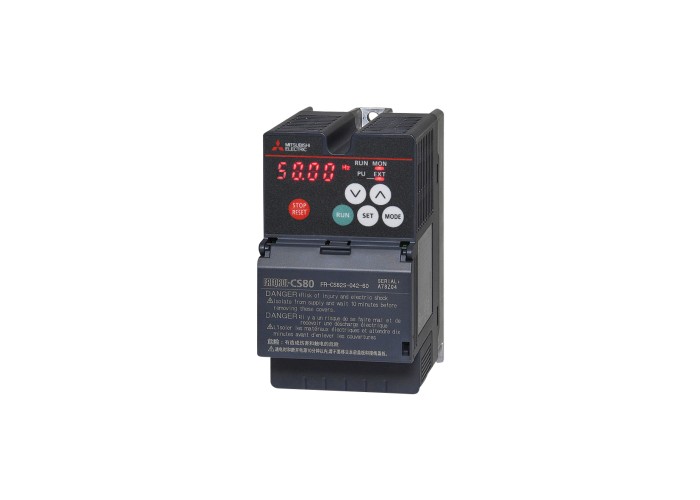

Инвертор (Честотен регулатор) 0,75kW 1x200-240V Rated Current: 4,2A IP20, Mitsubishi Electric FR-CS82S-042-60

Детайлна информация

Inverter

SeriesFR-CS80 SERIES

TypeFR-CS82 COMPACT INVERTER

Minimum Rated Voltage (V)200

Min. Permissible Voltage (V)170

Maximum Rated Voltage (V)240

Max. Permissible Voltage (V)264

Current TypeAC

Phases1

Rated Output Current ND (A)4,2

Rated Motor Capacity ND (kW)0,75

Control MethodADVANCED MAGN. FLUX VEC. CTRL

Motor TypeINDUCTION MOTOR

Integrated EMC FilterNO

Safe Torque Off (STO)NO

Regenerative (4Q)NO

Integrated DC ChokeNO

DisplayFR-LU08

Display Type4 DIGITS LED

PLC FunctionNO

Integrated Digital Inputs5

Digital Outputs (Transistor)1

Digital Outputs (Relay)0

Integrated Analogue Inputs2

Integrated Analogue Outputs0

IO Type of Terminal BlockSPRING CLAMP

ExpandableYES

RS-4851

USBNO

Ethernet PortNO

Built-In NetworkMODBUS-RTU

Leakage Current (mA)1

Power Loss ND (W)40

Standby Power Consumption (W)-

Protection ClassIP20

Frequency Range (Hz)0,2–400

Product Dimensions & Weight

Width (mm)68

Height (mm)128

Depth (mm)118

Weight (kg)0,6
