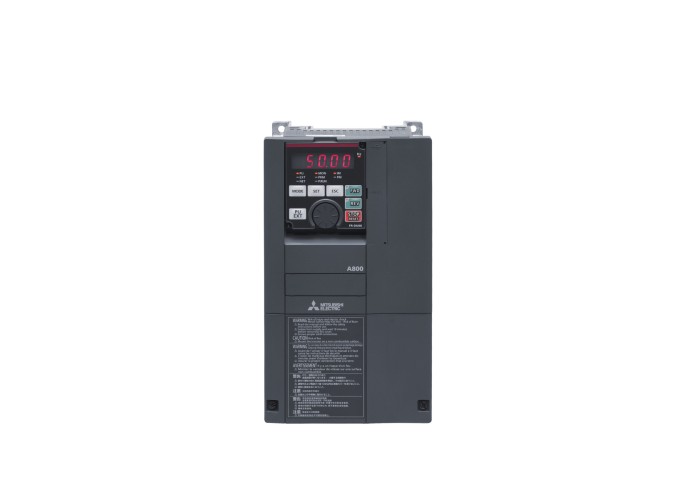

Mitsubishi Electric FR-A840-00083-E2-60CRN Инвертор (Честотен регулатор) AC, Pn: 1,5-3,7kW, 3x380-500V,In max: 8,3A,(2,2kW, 6A), IP20, ETH.

Детайлна информация

Inverter

SeriesFR-A800 PLUS SERIES

TypeFR-A800-CRN (FOR CRANES)

Minimum Rated Voltage (V)380

Min. Permissible Voltage (V)323

Maximum Rated Voltage (V)500

Max. Permissible Voltage (V)550

Current TypeAC

Phases3

Rated Output Current SLD (A)8,3

Rated Output Current LD (A)7,6

Rated Output Current ND (A)6

Rated Output Current HD (A)4

Rated Motor Capacity ND (kW)2,2

Rated Motor Capacity HD (kW)1,5

Control MethodVECTOR CONTROL (WITH FR-A8AP)V/F CONTROLSOFT-PWM/HIGH FREQUENCY PWMREAL SENSORLESS VECTOR CONTROLPM SENSORLESS VECTOR CONTROLMAGNETIC FLUX VECTOR CONTROL

Motor TypeINDUCTION MOTOR, PM MOTOR

Brake Chopper ED (%)-

Integrated EMC FilterYES

Safe Torque Off (STO)YES

Regenerative (4Q)NO

Integrated DC ChokeNO

DisplayFR-DU08

Display Type5 DIGITS LED (12 SEGMENT)

PLC FunctionYES

Program Memory6K

Program Memory UnitSTEPS

Integrated Digital Inputs12

Digital Outputs (Transistor)5

Digital Outputs (Relay)2

Integrated Analogue Inputs3

Integrated Analogue Outputs2

IO Type of Terminal BlockSPRING CLAMP

ExpandableYES

USB1+1 MINI

Ethernet Port1

Built-In NetworkCC-LINK IE FIELD NETWORK BASICMODBUS/TCPSLMPiQSS

Leakage Current (mA)35(DELTA) / 2(STAR)

Power Loss SLD (W)130

Power Loss LD (W)120

Power Loss ND (W)100

Power Loss HD (W)75

Standby Power Consumption (W)19

Protection ClassIP20

Frequency Range (Hz)0,2–590

Additional Product Information

Difference to Standard 1CRANE CONTROL

Product Dimensions & Weight

Width (mm)150

Height (mm)260

Depth (mm)140

Weight (kg)3,3
