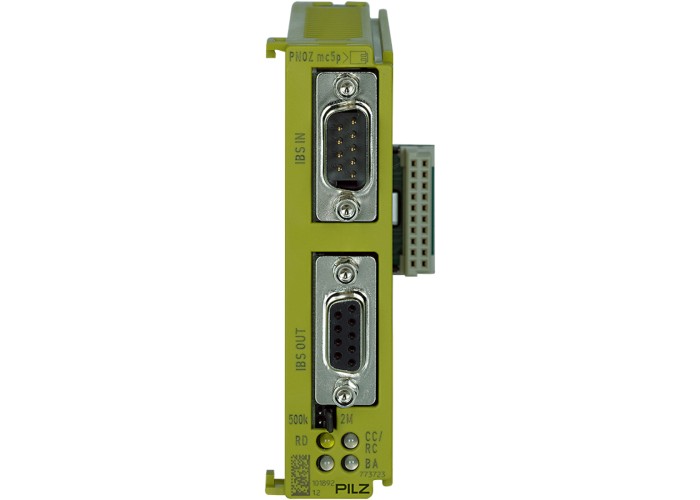

Комуникационен модул PNOZ mc5p Interbus, 773723

Детайлна информация

Type

Electrical data

Purpose of UINT1Module supply

Source of internal voltageVia base unit

Voltage type of UINT1DC

Tolerance of UINT. Module-2 %/+2 %

Fieldbus interface

Fieldbus interfaceINTERBUS-S

Fieldbus device typeSlave

Selectable transmission rates500 kBit/s2 MBit/s

IBS IN connection9-pin D-Sub male connector

Galv. isolation fieldbusYes

Test voltage500 V AC

Environmental data

Ambient temperature standardEN 60068-2-14

Ambient temperature0 - 55°C

Storage temperature standardEN 60068-2-1/-2

Climatic suitability standardEN 60068-2-30EN 60068-2-78

Humidity rating93 % r. h. at 40 °C

Condensation permitted?Not permitted

Perm. operating height ASL2000 m

EMC to standard ...EN 61131-2

Vibration to standard ...EN 60068-2-6

Acc. shock to standard115g

Clearance & creepage dist. toEN 61131-2

Overvoltage categoryIII

Pollution degree clear.&creep.2

Protection type standardEN 60529

Protection type, mounting

Protection type, housing

Terminal protection type

Mechanical data

Mounting positionhorizontal on top hat rail

DIN-rail dimensions35 x 7.5 EN 50022

Housing material lower sectionPPO UL 94 V0

Housing material front plateABS UL 94 V0

Height dimension94mm

Width dimension22.5mm

Depth dimension119mm

Net weight155g

Gross weight173g
