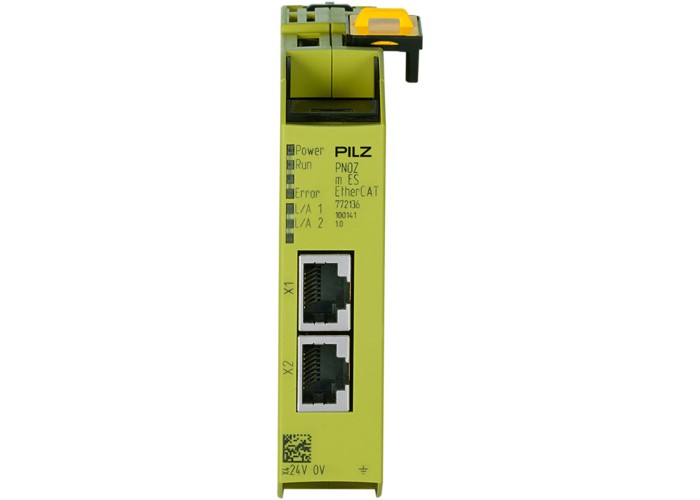

Комуникационен модул PNOZ m ES EtherCAT, 772136

Детайлна информация

Type

Electrical data

Purpose of U1Module supply

Supply voltage (V)24  V

Type of supply voltage U1DC

Power consumption DC0.9W

Potential isolation U1Yes

Purpose of UINT1Module supply

Source of internal voltageVia base unit

Voltage type of UINT1DC

Fieldbus interface

Fieldbus interfaceEtherCAT

Fieldbus device typeSlave

Name of fieldbus protocolCANopen over EtherCAT

Selectable transmission rates100 MBit/s

Connection fieldbusRJ45

Galv. isolation fieldbusYes

Environmental data

Ambient temperature standardEN 60068-2-14

Ambient temperature0 - 60°C

Storage temperature standardEN 60068-2-1/-2

Climatic suitability standardEN 60068-2-30EN 60068-2-78

Condensation permitted?Not permitted

Perm. operating height ASL2000 m

EMC to standard ...EN 61131-2

Vibration to standard ...EN 60068-2-6

Acc. shock to standard115g

Clearance & creepage dist. toEN 61131-2

Overvoltage categoryII

Pollution degree clear.&creep.2

Protection type standardEN 60529

Protection type, mounting

Protection type, housing

Terminal protection type

Potential separation

Potential isolation 1 betweenFieldbus and module

Type of potential isolation 1Functional insulation

Mechanical data

Mounting positionhorizontal on top hat rail

DIN-rail dimensions35 x 7.5 EN 50022

Housing material lower sectionPC

Housing material front platePC

Housing material upper partPC

Connection terminalSpring-loaded terminalScrew terminal

Flex. cond. c/s AWG info24 - 12 AWG

Height dimension101.4mm

Width dimension22.5mm

Depth dimension115mm

Net weight85g

Gross weight95g
