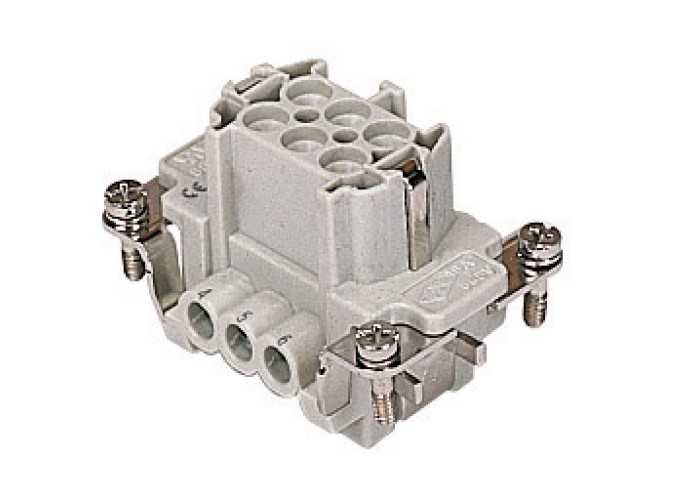

Вложка женска 16A, 6P, винтови клеми, размер 44x27, ILME CNEF 06 T

Детайлна информация

Product description

Product typeInsert

SeriesCNE

Connection typescrew terminal connection

GenderFemale

N. of poles6 poles +

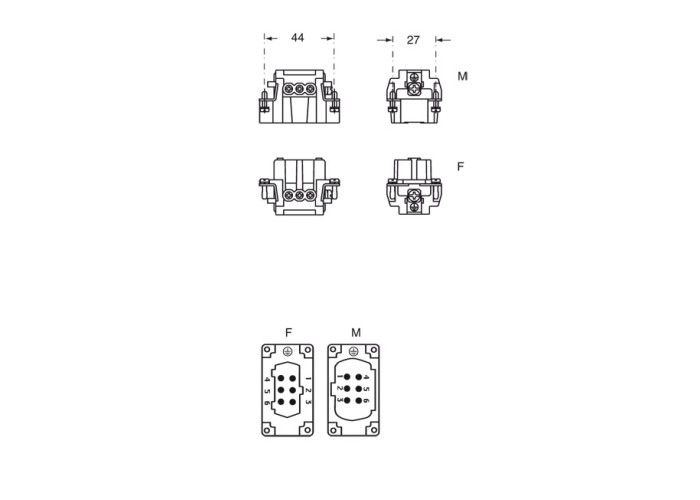

Sizesize 44.27

SpecificationWith plate, also for non-prepared conductors

Technical data

Current 16 A

Voltage 500  V

Rated impulse withstand voltage6 kV

Pollution degree3

Rated voltage according to UL/CSA600 V

Wire cross-section 0,50 mm² - 4,00 mm²

AWG size 20 - 12

Contact typeturned silver plated

IP degree of protectionIP20 without enclosure, IP65/IP66/IP68/IP69 with enclosure

Further technical details

Characteristics according to EN 6198416A 500V 6kV 3; 16A 400/690V 6kV 2

Mating cycles≥ 500

Insulation resistance≥ 10 GΩ

Contact resistance≤ 1 mΩ

Weight48,00 g

Operating temperature range (min, max)-40 °C ... +125 °C

Conductors stripping length7 mm

UL 94 flammability ratingV-0

Torque for main contactM3: 0,5 Nm; 4,4 lb.in (Ph0 or 0,8 x 4 mm)

Tightening torque for PE connectionM4: 1,2 Nm, 10,6 lb,in (Ph2 or 1,0x5,5mm )

Tightening torque for fixing screwsM3: 0.5 Nm; 4.4 lb.in (Ph1 or 0.8x4 mm)

Material properties

Main materialPolycarbonate (PC)

Other materialsContacts: copper alloy

ColourRAL 7032 grey

RoHs conformityCompliant with exemption6(c): copper alloy containing up to 4% lead by weight

China RoHs - EFUP50

REACH SVHC substancesYesLead

SCIP number1a9c93ff-0445-4a16-81e3-1609ac5274d6

Approvals / Standards

Reference standardEN 61984:2009-06

CertificationsCSA, CQC, DNV, BV, EAC

ULECBT2, PVVA2

cULECBT8, PVVA8

General ordering information

EAN13 code8015747032070

eCl@ss 8.127440205

ETIM 7.0EC000438

Packaging Information

Packaging length270,00 mm

Packaging height75,00 mm

Packaging width180,00 mm

Packaging weight3,19 kg

Packaging volume3,65 dm³

Packaging descriptionCarton box

Packaging quantity60 Pcs

Packaging EAN code8015747032087

Sub-packaging length104,00 mm

Sub-packaging height36,00 mm

Sub-packaging width180,00 mm

Sub-packaging weight0,53 kg

Sub-packaging volume0,67 dm³

Sub-packaging descriptionCarton tray

Sub-packaging quantity10 Pcs

Sub-packaging EAN barcode8015747032094
