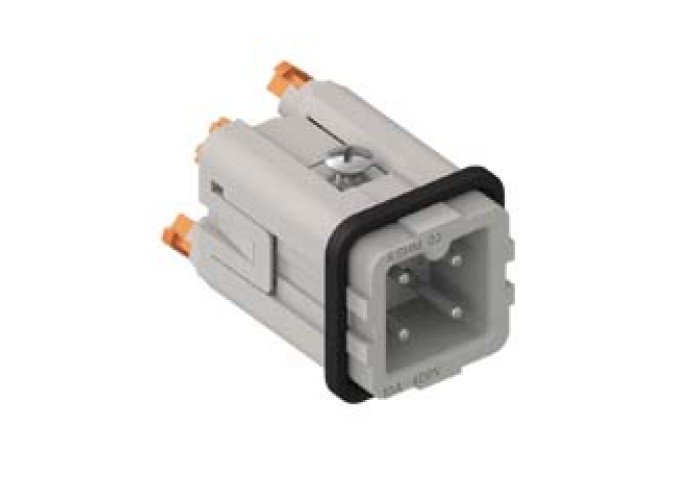

Вложка мъжка с пружинни клеми SQUICH, 3P + PE, 10A, размер 21x21, ILME CKSHM 03

Детайлна информация

Product description

Product typeInsert

SeriesCKSH

Connection typeSQUICH® spring terminal connection without tools

GenderMale

N. of poles3 poles +

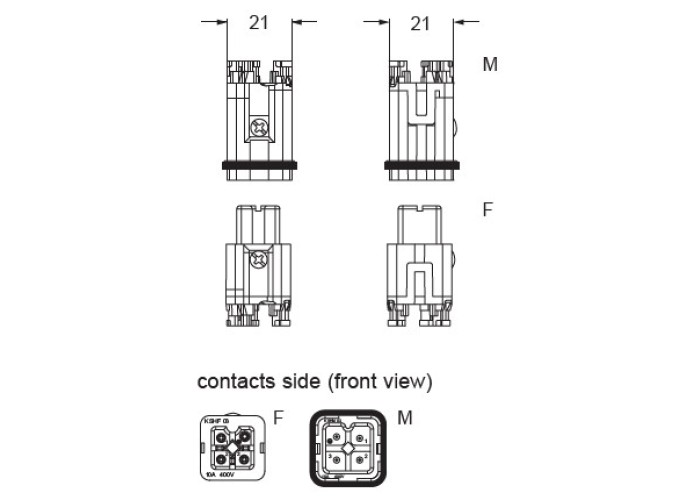

Sizesize "21.21"

Technical data

Current 10 A

Voltage 400  V

Rated impulse withstand voltage4 kV

Pollution degree3

Rated voltage according to UL/CSA600 V

Wire cross-section 0,14 mm² - 2,50 mm²

AWG size 26 - 14

Contact typeturned silver plated

IP degree of protectionIP20 without enclosure, IP44/IP66/IP67/IP68/IP69 with enclosure

Further technical details

Characteristics according to EN 6198410A 400V 4kV 3; 10A 690V 4kV 2

Mating cycles≥ 500

Insulation resistance≥ 10 GΩ

Contact resistance≤ 3 mΩ

Weight16,00 g

Operating temperature range (min, max)-40 °C ... +125 °C

Conductors stripping length9...11 mm

UL 94 flammability ratingV-0

Tightening torque for fixing screwsM3: 0,5 Nm; 4,4 lb.in (Ph1 or 0,8 x 5,5 mm)

Material properties

Main materialPolycarbonate (PC)

Other materialsContacts: copper alloy Gasket: NBR

ColourRAL 7032 grey

RoHs conformityCompliant with exemption6(c): copper alloy containing up to 4% lead by weight

China RoHs - EFUP50

REACH SVHC substancesYesLead

SCIP number1a9c93ff-0445-4a16-81e3-1609ac5274d6

Approvals / Standards

CertificationsDNV, BV, EAC,CQC

ULECBT2

cULECBT8

General ordering information

EAN13 code8015747234603

eCl@ss 8.127440205

ETIM 7.0EC000438

Packaging Information

Packaging length226,00 mm

Packaging height245,00 mm

Packaging width155,00 mm

Packaging weight3,55 kg

Packaging volume8,58 dm³

Packaging descriptionCarton box

Packaging quantity200 Pcs

Packaging EAN code8015747234658

Sub-packaging length125,00 mm

Sub-packaging height43,00 mm

Sub-packaging width206,00 mm

Sub-packaging weight0,71 kg

Sub-packaging volume1,11 dm³

Sub-packaging descriptionCarton tray

Sub-packaging quantity40 Pcs

Sub-packaging EAN barcode8015747234665
