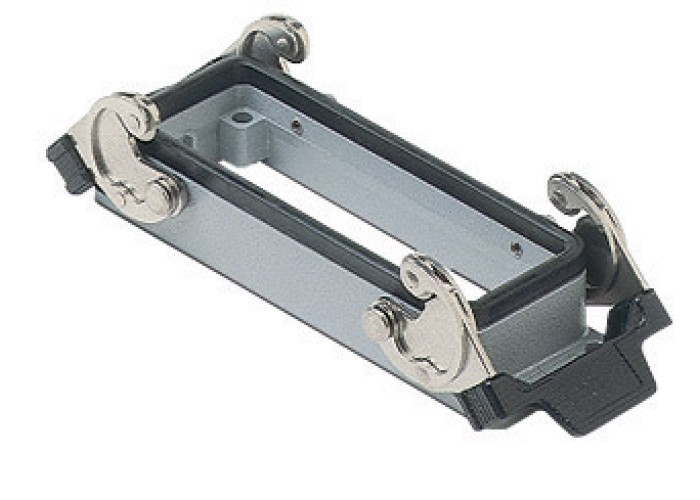

Носач панелен монт., 2 лоста, 24P, размер 104x27, ILME CHI 24

Детайлна информация

Product description

Product typeBulkhead mounting housing

SeriesC-TYPE

Closing typewith 2 levers

Sizesize 104.27

Cable entrywithout cable entry

Technical data

IP degree of protectionIP65 / IP66 / IP69

Further technical details

Weight176,60 g

Operating temperature range (min, max)-40°C...+125°C

Material properties

Other materialsLever: Stainless steel, polyamide (PA) Gasket: NBR

ColourRAL 7040 grey

RoHs conformitycompliant

China RoHs - EFUPe

REACH SVHC substancesno

Approvals / Standards

CertificationsDNV, BV

ULECBT2

cULECBT8

General ordering information

EAN13 code8015747018142

eCl@ss 8.127440202

ETIM 7.0EC000437

Packaging Information

Packaging length400,00 mm

Packaging height230,00 mm

Packaging width380,00 mm

Packaging weight8,00 kg

Packaging volume34,96 dm³

Packaging descriptionCarton box

Packaging quantity40 Pcs

Packaging EAN code8015747018159

Sub-packaging weight1,00 kg

Sub-packaging descriptionPlastic packaging

Sub-packaging quantity5 Pcs

Sub-packaging EAN barcode8015747018166
