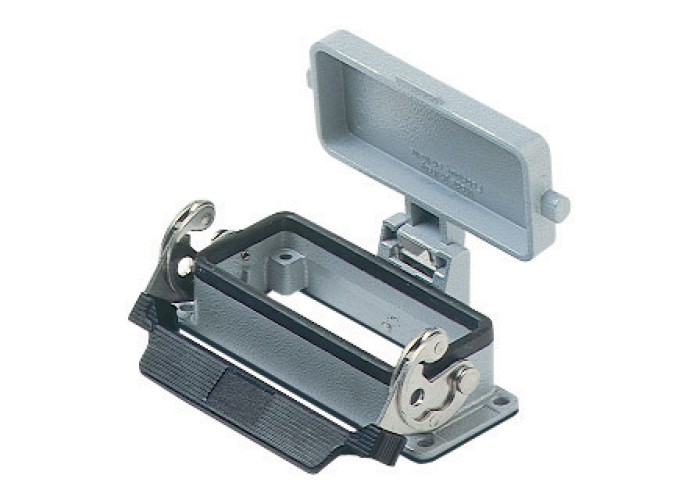

Носач панелен монт. с капак, 1 лост, 16P, размер 77x27, ILME CHI 16 LS

Детайлна информация

Product description

Product typeBulkhead mounting housing

SeriesC-TYPE

Closing typewith 1 lever

Sizesize 77.27

Cable entrywithout cable entry

Specificationwith metal cover

Technical data

IP degree of protectionIP65

Further technical details

Weight190,08 g

Operating temperature range (min, max)-40°C...+125°C

Material properties

Other materialsLever: Stainless steel, polyamide (PA) Gasket: NBR

ColourRAL 7040 grey

RoHs conformitycompliant

China RoHs - EFUPe

REACH SVHC substancesno

Approvals / Standards

CertificationsDNV, BV

ULECBT2

cULECBT8

General ordering information

EAN13 code8015747017992

eCl@ss 8.127440202

ETIM 7.0EC000437

Packaging Information

Packaging length475,00 mm

Packaging height220,00 mm

Packaging width200,00 mm

Packaging weight4,38 kg

Packaging volume20,90 dm³

Packaging descriptionCarton box

Packaging quantity20 Pcs

Packaging EAN code8015747018005

Sub-packaging weight1,10 kg

Sub-packaging descriptionPlastic packaging

Sub-packaging quantity5 Pcs

Sub-packaging EAN barcode8015747018012
