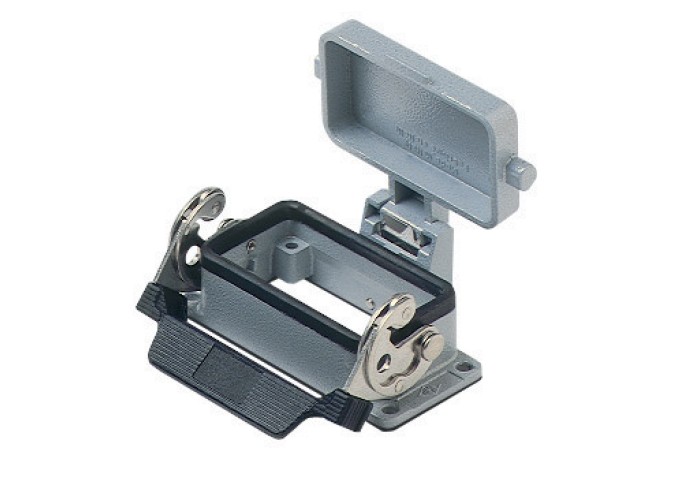

Носач панелен монт. с капак, 1 лост, 10P, размер 57x27, ILME CHI 10 LS

Детайлна информация

Product description

Product typeBulkhead mounting housing

SeriesC-TYPE

Closing typewith 1 lever

Sizesize 57.27

Cable entrywithout cable entry

Specificationwith metal cover

Technical data

IP degree of protectionIP65

Further technical details

Weight172,00 g

Operating temperature range (min, max)-40°C...+125°C

Material properties

Other materialsLever: Stainless steel, polyamide (PA) Gasket: NBR

ColourRAL 7040 grey

RoHs conformitycompliant

China RoHs - EFUPe

REACH SVHC substancesno

Approvals / Standards

CertificationsDNV, BV

ULECBT2

cULECBT8

General ordering information

EAN13 code8015747017541

eCl@ss 8.127440202

ETIM 7.0EC000437

Packaging Information

Packaging length315,00 mm

Packaging height230,00 mm

Packaging width210,00 mm

Packaging weight3,90 kg

Packaging volume15,21 dm³

Packaging descriptionCarton box

Packaging quantity20 Pcs

Packaging EAN code8015747017558

Sub-packaging weight0,98 kg

Sub-packaging descriptionPlastic packaging

Sub-packaging quantity5 Pcs

Sub-packaging EAN barcode8015747017565
