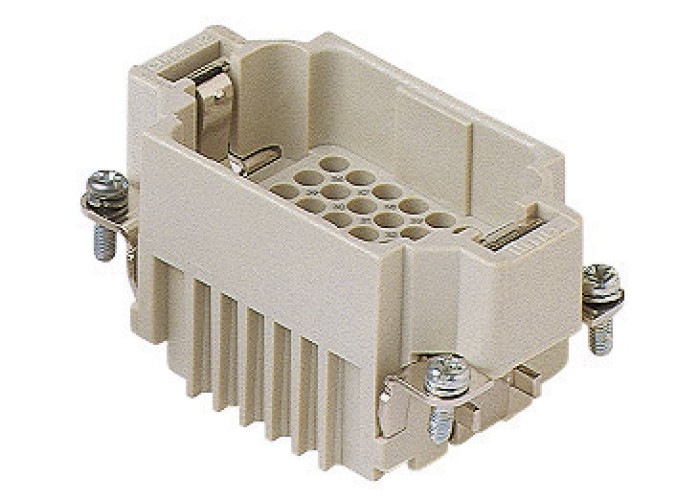

Вложка мъжка за кримпване, 42P, 10A, размер 57x27, ILME CDDM 42

Детайлна информация

Product description

Product typeInsert

SeriesCDD

Connection typecrimp connection

GenderMale

N. of poles42 poles +

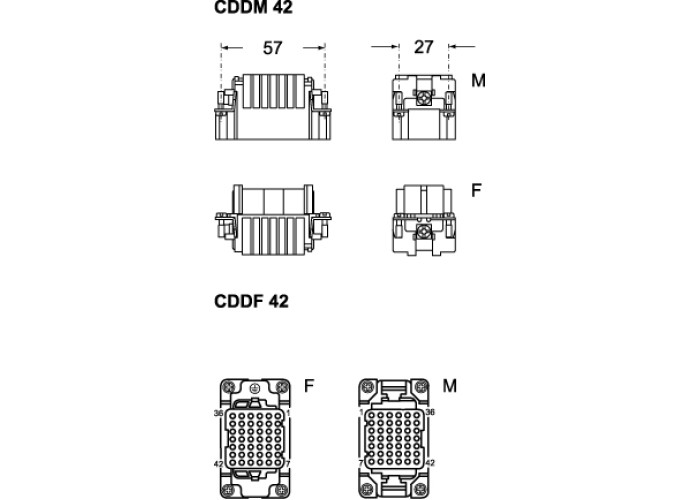

Sizesize 57.27

Technical data

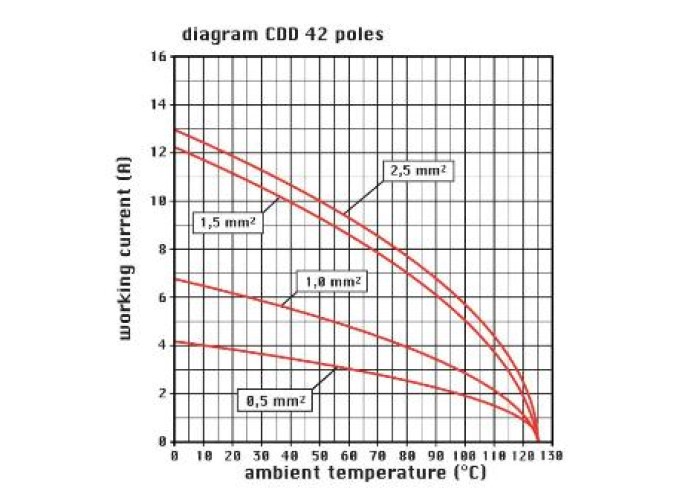

Current 10 A

Voltage 250  V

Rated impulse withstand voltage4 kV

Pollution degree2

Rated voltage according to UL/CSA600 V

IP degree of protectionIP20 without enclosure, IP65/IP66/IP68/IP69 with enclosure

Further technical details

Characteristics according to EN 6198410A 250V 4kV 2

Mating cycles≥ 500

Insulation resistance≥ 10 GΩ

Contact resistance≤ 3 mΩ

Weight46,50 g

Operating temperature range (min, max)-40 °C ... +125 °C

UL 94 flammability ratingV-0

Tightening torque for PE connectionM4: 1,2 Nm, 10,6 lb,in (Ph2 or 1,0x5,5mm )

Tightening torque for fixing screwsM3: 0.5 Nm; 4.4 lb.in (Ph1 or 0.8x4 mm)

Material properties

Main materialPolycarbonate (PC)

ColourRAL 7032 grey

RoHs conformitycompliant

China RoHs - EFUPe

REACH SVHC substancesno

Approvals / Standards

Reference standardEN 61984:2009-06

CertificationsCSAc, CQC, DNV, BV, EAC

ULECBT2

cULECBT8

General ordering information

EAN13 code8015747014113

eCl@ss 8.127440205

ETIM 7.0EC000438

Packaging Information

Packaging length210,00 mm

Packaging height75,00 mm

Packaging width180,00 mm

Packaging weight1,81 kg

Packaging volume2,84 dm³

Packaging descriptionCarton box

Packaging quantity30 Pcs

Packaging EAN code8015747014120

Sub-packaging length67,00 mm

Sub-packaging height36,00 mm

Sub-packaging width180,00 mm

Sub-packaging weight0,30 kg

Sub-packaging volume0,43 dm³

Sub-packaging descriptionCarton tray

Sub-packaging quantity5 Pcs

Sub-packaging EAN barcode8015747014137
