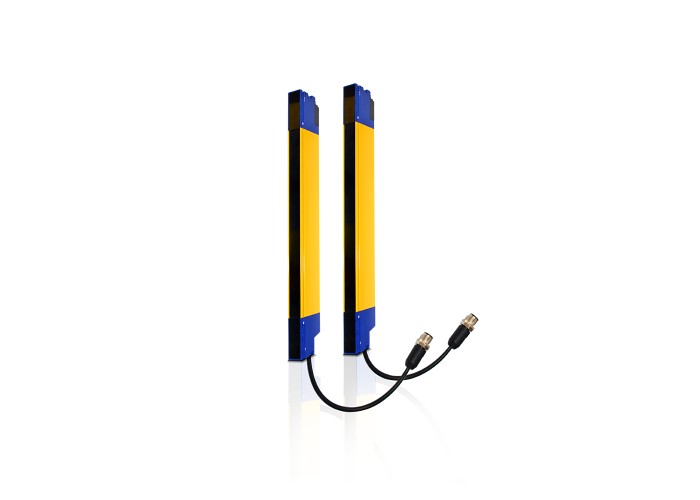

Datasensing SL4-34-0540-E - SLIM safety light curtain type 4 res=34 mm h=540 mm edm man/auto

Детайлна информация

• Highest mechanical flexibility for a perfect fit into machine structures
• Simple commissioning and maintenance
• High functional performance
• SLIM profile: 15 x 32 mm
• Pigtail cable with 5-pole M12 connectors
• Same cable for Emitter and Receiver
• No Dead Zone
• 14, 24 and 34 mm resolution
• 34 different protection lengths, with 30 mm modularity
• 3 different brackets shapes
• Cascadable up to 3 units
• Auto/Manual restart and EDM function configuration by wiring
• LED display messages diagnosis

Detection properties

Nominal sensing distance0,2 … 6 m

Resolution34mm

controlled height540 mm

number of rays19

Sensitivity adjustmentn/a

Effective Aperture Angle≤ ±2,5°

Application

Function PrincipleEmitter + Receiver

Available functionsManual/Automatic Restart, EDM

DescriptionSLIM no-dead-zone cascadable

FunctionsHand protection res. 34 mm

Safety parameters

TypeType 4 safety light curtain (A/M)

SIL3

SILCL3

PLe

MTTFd444 years

Outputs

Output type2 x PNP-NO (OSSD safety output) with EDM

Response time9,9 ms

Response Time (Master + Slave)18 ms

Response Time (Master + 2 Slave)20 ms

Electrical data

Operating Voltage24 Vdc ± 20%

Load current≤ 500mA each output

EmissionInfrared LED (850 nm wavelength)

Interference to external lightAccording to IEC 61496-2

Power Consumption - Receiver≤ 4,2W (no load)

Power Consumption - Emitter≤ 1,6W

Cabel Length (Power Supply/Output)≤ 20m

Cable Length for Master Slave Interconnections≤ 1m (Master-Slave Cable)

Mechanical data

Dimensions15x33x540

MaterialMetal - Aluminium / PMMA / Painted Zamak

ConnectionsM12-5 poles pig-tail (emitter) M12-5 poles pig-tail (receiver)

Storage temperature-25…+ 70°C

VibrationsWidth 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6)

Shocks16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)

Test/Approvals

EMC compatibilityAccording to 2014/30/EU Directive

Accessories

Supplied AccessoriesC-shaped Brackets (included): 2 pcs kit + O-shaped Brackets (included): 4 pcs kit

Generical Data

Dimensions15,4x32,6x540 mm

Operating Temperature-10…+55°C

Humidity15 … 95 % (no condensation)

Mechanical ProtectionIP65
