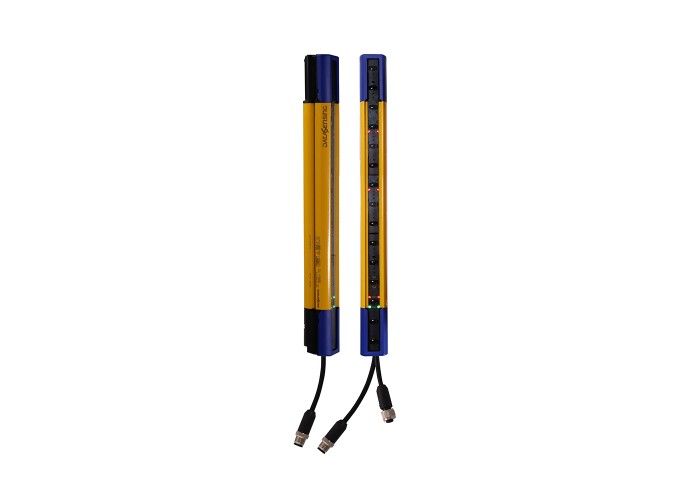

Datasensing SH4-30-0600-A-12 - SH4 ADVANCED Res=30 mm h=600 mm 12 poles edm man/auto muting blanking wi-fi

Детайлна информация

• Hand protection (30 mm)
• Improved operating range: 20 m
• Basic functions: alignment, automatic restart
• Standard functions: manual restart, EDM
• Standard Muting functions: 2-signals mono and bidirectional muting, override
• Advanced functions: partial muting, dynamic partial muting, 4-signals muting, reduced resolution, multiple fixed or floating blanking zones
• Innovative wireless monitoring and configuration system
• Extended monitored height up to 2250 mm
• Compact profile (35 x 40 mm), common to all SH4 line
• Installation eased by LEDs indications of beam intensity
• Optical synchronization with 2 beams
• IP67 Protection
• -30 … +55 °C Operating temperature
• Zero dead zone
• Simultaneous muting and blanking
• Complete couple and angular bracket included in the package
• Anti-interference codes
• Aligment eased by integrated laser
• Integrated LED muting indication
• Muting accessories avilable with prewired and preinstalled muting sensors
• Cascadable with SH4 CASCADE up to three units
• Pigtails with M12 connectors with standard not shielded cables

Detection properties

Nominal sensing distance0.2 … 20 m

Resolution30 mm

controlled height600 mm

number of rays24

Effective Aperture Angle≤ ±2.5°

Application

Function PrincipleEmitter + Receiver

Available functionsManual/Automatic Restart, EDM, L/T 2-signals Muting, T 4-signals Muting, Partial Muting, Muting Filter, Override, Blanking, Wi-fi programmability

DescriptionCompact no-dead-zone ADVANCED Wi-Fi Programmable

Muting lamp outputIncandescent lamp or LED

FunctionsFinger protection res. 30 mm Wi-Fi programmable

Safety parameters

TypeType 4 safety light curtain (A/M)

SIL3

SILCL3

PLe

MTTFd43 years

SFF99,50%

Outputs

Output type2 x PNP-NO (OSSD safety output) with EDM

Response time9 ms

Electrical data

Operating Voltage24 Vdc ± 20%

Load current≤ 250mA each output

EmissionInfrared LED (850 nm wavelength)

Interference to external lightAccording to IEC 61496-2

Power Consumption - Receiver≤ 4W (no load)

Power Consumption - Emitter≤ 3,5W

Capacitive Load≤ 1µF

Cabel Length (Power Supply/Output)≤ 30 m

Cable Length for Master Slave Interconnections≤ 10 m

Mechanical data

MaterialPainted aluminum / MAKROLON AR 7099 Clear PC / PBT

ConnectionsM12-5 poles pigtail (emitter) M12-12 poles pigtail (receiver)

Storage temperature-30 …+70 °C

Vibrations10 mm / 3 g, 5 … 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3)

Shocks25 g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3)

Test/Approvals

ApprovalsCE, cULus, TÜV, UKCA

EMC compatibilityAccording to 2014/30/EU Directive

Shocks and vibrations10 mm / 3g, 5 to 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); 25g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3)

Accessories

Supplied AccessoriesStandard "L" Mounting Brackets: 4 pcs kit

Accessories to be ordered separatelyTop-bottom rotating mounting bracket ST-K4ROT-SH

Generical Data

Integrated aimerIntegrated laser pointer

Network InterfaceWi-Fi Ethernet TCP/IP

Dimensions35x40x609 mm

Operating Temperature-30…+55°C

Humidity15 … 95 % (no condensation)

Mechanical ProtectionIP65, IP 67 (EN 60529)
