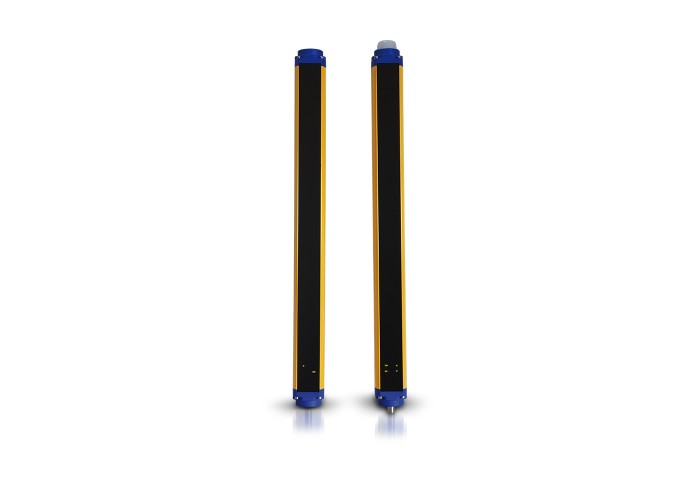

Datasensing SG4-RB3L-080-OO-W - SG BODY REFLECTOR MUTING safety type 4 3 beams h=800 mm edm man/auto muting active side L arms

Детайлна информация

• One active and one passive unit to reduce wiring and installation costs
• Robust housing for harsh environments
• Easy installation and alignment
• Reflective muting arms included in L and T muting version
• All advanced features associated to muting function
• 2, 3, 4 beams for body protection
• Controlled heights 500, 800, 900 and 1200 mm
• Up to 8 m operating distance
• Simple configuration through DIP switches
• Integrated muting lamp (muting models)
• Anti-interference coding
• External muting enable signal
• Edged or triggered muting dependent override

Detection properties

Nominal sensing distance0,5 … 3 m

Resolution400mm

controlled height800 mm

number of rays3

Sensitivity adjustmentDip-switch

Effective Aperture Angle≤ ±2,5°

Application

Function PrincipleTransceiver (Active side)

Available functionsManual/Automatic Restart, EDM, L Muting, Override, Muting Enable, Muting Filter

DescriptionBig RRX active unit L arms

FunctionsBody protection 3 beams muting

Safety parameters

TypeType 4 safety light curtain (A/M)

SIL3

SILCL3

PLe

MTTFd439 years

SFF97,50%

Outputs

Output type2 x PNP-NO (OSSD safety output) with EDM

Response time11,5 ms

Electrical data

Operating Voltage24 Vdc ± 20%

Load current≤ 500mA each output

EmissionInfrared LED (950 nm wavelength)

Interference to external lightAccording to IEC 61496-2

Power Consumption - Receiver≤ 6,5W (no load)

Power Consumption - Emittern/a

Cabel Length (Power Supply/Output)≤ 70m

Mechanical data

Dimensions52x57x909

MaterialPainted aluminum / PMMA / PBT Valox 508

ConnectionsM12-12 poles + M12-5 poles (Active Unit)

Storage temperature-25…+ 70°C

VibrationsWidth 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6)

Shocks16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)

Test/Approvals

EMC compatibilityAccording to 2014/30/EU Directive

Generical Data

Dimensions52x56,9x909,35 mm

Operating Temperature0…+55°C

Humidity15 … 95 % (no condensation)

Mechanical ProtectionIP65
