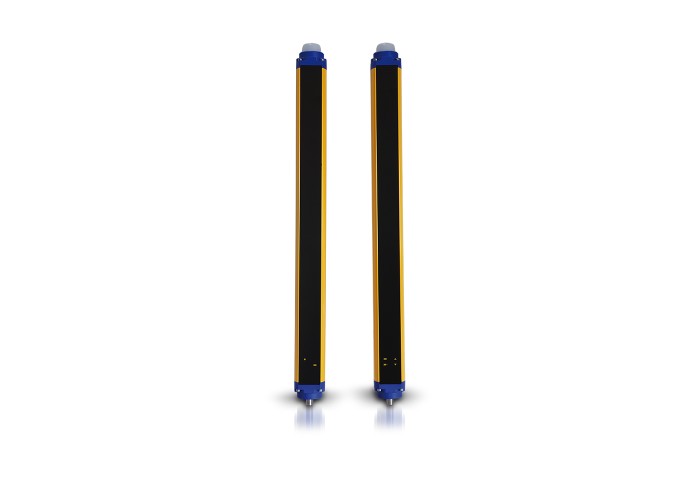

Datasensing SG4-B4-090-OO-E - SG BODY BIG BASE safety multiple beam type 4 4 beams h=900 mm edm man/auto

Детайлна информация

• Robust housing for harsh environments
• Long operating range for perimeter control
• Rapid solution for access control with muting
• Easy installation and alignment
• 2, 3, 4 beams for body protection
• 40 mm resolution for arm protection and presence detection
• Controlled heights 500, 800, 900 and 1200 mm
• Long operating distance: up to 60 m
• Simple configuration through DIP switches
• Integrated muting lamp (only muting models)
• Anti-interference coding
• External muting enable signal
• Edged or triggered muting dependent override

Detection properties

Nominal sensing distance6 … 60 m

Resolution300mm

controlled height900 mm

number of rays4

Sensitivity adjustmentn/a

Effective Aperture Angle≤ ±2,5°

Application

Function PrincipleEmitter + Receiver

Available functionsManual/Automatic Restart, EDM

DescriptionBig for harsh environment

FunctionsBody protection 4 beams

Safety parameters

TypeType 4 safety light curtain (A/M)

SIL3

SILCL3

PLe

MTTFd353 years

Dcavg96,40%

SFF97,90%

Outputs

Output type2 x PNP-NO (OSSD safety output) with EDM

Response time14 ms

Electrical data

Operating Voltage24 Vdc ± 20%

Load current≤ 500mA each output

EmissionInfrared LED (950 nm wavelength)

Interference to external lightAccording to IEC 61496-2

Power Consumption - Receiver≤ 4W (no load)

Power Consumption - Emitter≤ 2,5W

Capacitive Load≥ 2,2µF

Cabel Length (Power Supply/Output)≤ 70m

Mechanical data

Dimensions52x60x1006

MaterialPainted aluminum / PMMA / PBT Valox 508

ConnectionsM12-5 poles pig-tail (emitter) M12-8 poles pig-tail (receiver)

Storage temperature-25…+ 70°C

VibrationsWidth 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6)

Shocks16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)

Test/Approvals

ApprovalsCE, cULus, TÜV

EMC compatibilityAccording to 2014/30/EU Directive

Generical Data

Dimensions52x56,9x1006,35 mm

Operating Temperature0…+55°C

Humidity15 … 95 % (no condensation)

Mechanical ProtectionIP65
