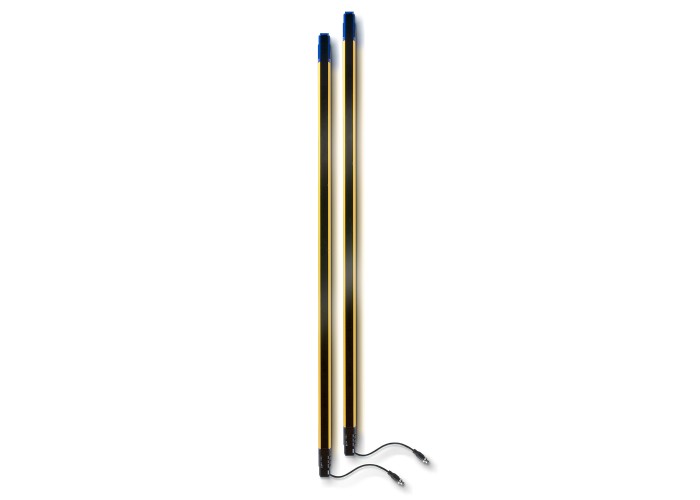

Datasensing SG4-30-150-OO-P - SG4 EXTENDED safety light curtain type 4 res=30 mm h=1500 mm edm man/auto coded programmable

Детайлна информация

• No dead zone
• Pigtail cable with M12 connector
• Cascade connection of up to 3 units
• Up to 20m operating range and 1800m protected height
• Compact dimensions (35 x 41 mm section)
• Anti-interference coding
• Integrated Muting function
• Floating Blanking, Fixed Blanking and Reduced Resolution
• Configurable with:
• Pushbuttons for common configuration
• Graphic User Interface for complete parametrisation
• Ethernet Interface for programming, monitoring and error logging

Detection properties

Nominal sensing distance0,2 … 20 m

Resolution30mm

controlled height1500 mm

number of rays80

Sensitivity adjustmentTeach-in/GUI

Effective Aperture Angle≤ ±2,5°

Application

Function PrincipleEmitter + Receiver

Available functionsProgrammable Muting & Blanking

DescriptionCompact no-dead-zone programmable

FunctionsHand prot. res. 30 mm programmable

Safety parameters

TypeType 4 safety light curtain (A/M)

SIL3

SILCL3

PLe

MTTFd131 years

Dcavg98,80%

Outputs

Output type2 x PNP-NO (OSSD safety output) with EDM

Response time29 ms

Response Time (Master + Slave)Tcascade [ms] = Tmaster + Tslave1 + 7,5

Response Time (Master + 2 Slave)Tcascade [ms] = Tmaster + Tslave1 + Tslave2 + 7,5

Electrical data

Operating Voltage24 Vdc ± 20%

Load current≤ 500mA each output

EmissionInfrared LED (950 nm wavelength)

Interference to external lightAccording to IEC 61496-2

Power Consumption - Receiver≤ 5W (no load)

Power Consumption - Emitter≤ 3W

Cabel Length (Power Supply/Output)≤ 50m

Cable Length for Master Slave Interconnections≤ 1m (Master-Slave Cable)

Mechanical data

Dimensions35x41x1506

MaterialPainted aluminum / PMMA / PBT Valox 508 / PC LEXAN

ConnectionsM12-5 poles pig-tail (emitter) M12-12 poles + M12-5poles / M12-12 poles pig-tails (receiver)

Storage temperature-25…+ 70°C

VibrationsWidth 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6)

Shocks16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)

Test/Approvals

EMC compatibilityAccording to 2014/30/EU Directive

Accessories

Supplied AccessoriesStandard "L" Mounting Brackets: 6 pcs kit

Generical Data

Network InterfaceEthernet TCP/IP

Dimensions35x40,75x1506,3 mm

Operating Temperature0…+50°C

Humidity15 … 95 % (no condensation)

Mechanical ProtectionIP65
