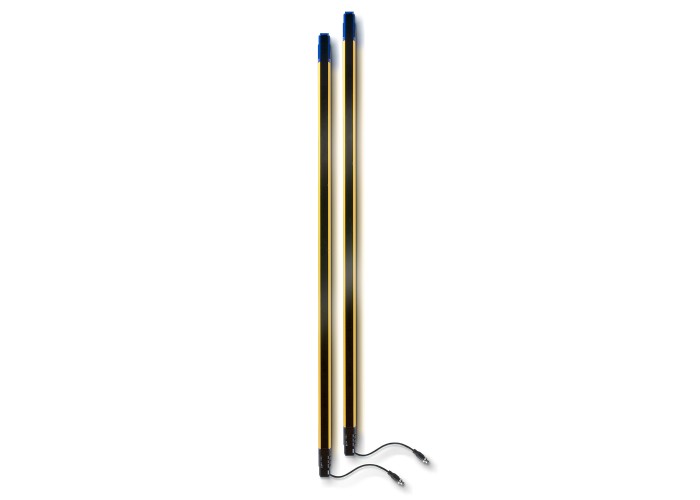

Datasensing SG4-14-180-OO-N - SG4-N safety light curtain type 4 res=14 mm h=1800 mm edm man/auto muting 8 poles

Детайлна информация

• No dead zone
• Pigtail cable with M12 connector
• Up to 20m operating range and 1800m protected height
• Compact dimensions (35 x 41 mm section)
• Anti-interference coding
• Integrated Muting function
• Configurable with Pushbuttons for common configuration

Detection properties

Nominal sensing distance0,2 … 7 m

Resolution14mm

controlled height1800 mm

number of rays192

Sensitivity adjustmentTeach-in

Effective Aperture Angle≤ ±2,5°

Application

Function PrincipleEmitter + Receiver

Available functionsManual/Automatic Restart, EDM, L/T Muting, Partial Muting, Override, Range Reduction (on TX)

DescriptionCompact (connector = old SE)

FunctionsFinger prot. res. 14 mm muting

Safety parameters

TypeType 4 safety light curtain (A/M)

SIL3

SILCL3

PLe

MTTFd131 years

Dcavg98,80%

Outputs

Output type2 x PNP-NO (OSSD safety output) with EDM

Response time33 ms

Electrical data

Operating Voltage24 Vdc ± 20%

Load current≤ 500mA each output

EmissionInfrared LED (950 nm wavelength)

Interference to external lightAccording to IEC 61496-2

Power Consumption - Receiver≤ 5W (no load)

Power Consumption - Emitter≤ 3W

Cabel Length (Power Supply/Output)≤ 50m

Mechanical data

Dimensions35x41x1806

MaterialPainted aluminum / PMMA / PBT Valox 508 / PC LEXAN

ConnectionsM12-5 poles pig-tail (emitter) M12-8 poles pig-tail (receiver)

Storage temperature-25…+ 70°C

VibrationsWidth 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6)

Shocks16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)

Test/Approvals

EMC compatibilityAccording to 2014/30/EU Directive

Accessories

Supplied AccessoriesStandard "L" Mounting Brackets: 6 pcs kit

Generical Data

Dimensions35x40,75x1806,3 mm

Operating Temperature0…+50°C

Humidity15 … 95 % (no condensation)

Mechanical ProtectionIP65
