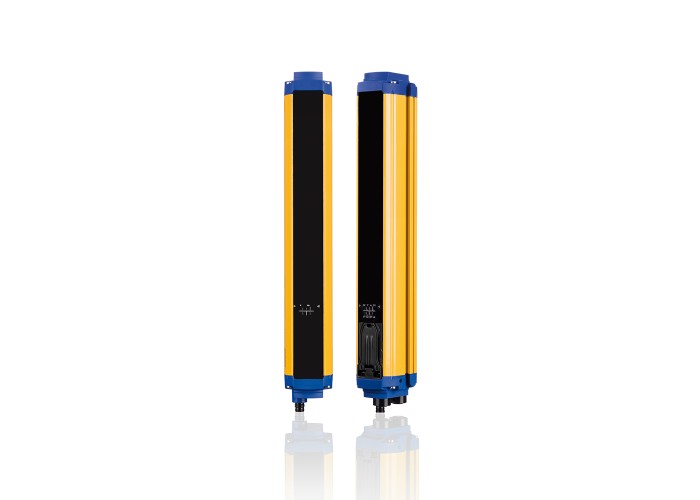

Datasensing SG4-14-060-OP-B - SG4 FIELDBUS BASE safety light curtain type 4 res=14 mm h=600 mm openSAFETY/POWERLINK

Детайлна информация

• Fast and easy installation, configuration and maintenance
• Complete diagnostic and monitoring available over the communication bus
• Basic models: classic functions available
• Advanced models: each beam status safe information available
• Two M12 connectors on receiver side for POWERLINK connection
• M8 connectors on emitter and receiver for power supply
• Up to 19m operating range and 1800m protected height
• Finger, hand and body protection
• Compact dimensions (35 x 42 mm section)
• POWERLINK node address configurable with selector switches
• Functions available in combination with B&R safety controller SL and SLX: auto/manual
• restart, EDM, Muting, Override
• Functions available for advanced models in combination with B&R safety controller SL:
• fixed blanking, floating blanking, partial and dynamic muting, warning areas, measurement

Detection properties

Nominal sensing distance0,2 … 6 m

Resolution14mm

controlled height600 mm

number of rays64

Sensitivity adjustmentGUI

Effective Aperture Angle≤ ±2,5°

Application

Function PrincipleEmitter + Receiver

Available functionsOpenSAFETY/POWERLINK Basic Functions

DescriptionCompact - OpenSAFETY/POWERLINK Basic functions

FunctionsFinger prot. res. 14 mm openSAFETY

Safety parameters

TypeType 4 safety light curtain (A/M)

SIL3

SILCL3

PLe

MTTFd118 years

Dcavg98,80%

Outputs

Output typePOWERLINK

Response time29 ms

Electrical data

Operating Voltage24 Vdc ± 20%

Load current≤ 500mA each output

EmissionInfrared LED (940 nm wavelength)

Interference to external lightAccording to IEC 61496-2

Power Consumption - Receiver≤ 5W (no load)

Power Consumption - Emitter≤ 3W

Cabel Length (Power Supply/Output)≤ 50m

Mechanical data

Dimensions35x42x683

MaterialPainted aluminum / PMMA / PBT Valox 508

ConnectionsM8-4 poles (emitter) M8-4 poles + 2x M12-4 poles D-Coded (receiver)

Storage temperature-25…+ 70°C

VibrationsWidth 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6)

Shocks16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)

Test/Approvals

EMC compatibilityAccording to 2014/30/EU Directive

Accessories

Supplied AccessoriesStandard "L" Mounting Brackets: 4 pcs kit

Generical Data

Network InterfaceopenSAFETY/POWERLINK

Dimensions35x41,9x682,7 mm

Operating Temperature0…+50°C

Humidity15 … 95 % (no condensation)

Mechanical ProtectionIP65
