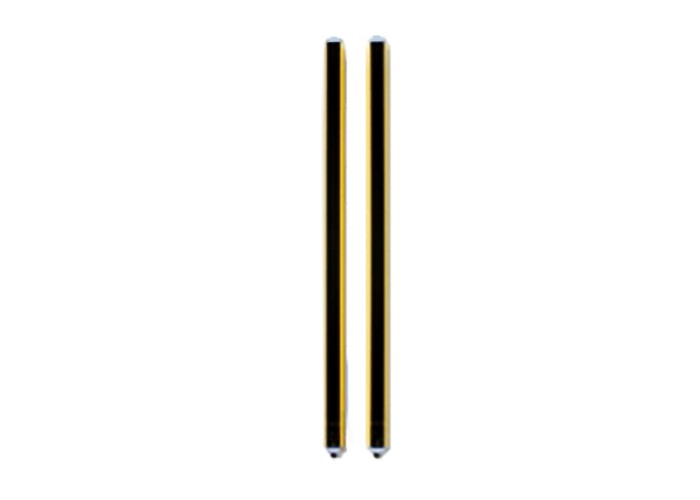

Datasensing SG2-50-075-OO-X - SG2 BASE safety light curtain type 2 res=50 mm h=750 mm autorestart

Детайлна информация

• High reliability
• Easy installation and alignment
• Cost effective Finger, hand, arm detection with basic functions
• 90 mm version for presence detection
• Up to 19 m operating distance
• Compact dimensions (32.3 x 36.9 mm section)
• Anti-interfence coding
• IP65 Protection; IP69K with optional tube
• Unshielded cables
• Rotating and anti-vibration brackets

Detection properties

Nominal sensing distance0,2 … 19 m

Resolution50mm

controlled height750 mm

number of rays21

Sensitivity adjustmentn/a

Effective Aperture Angle≤ ±5°

Application

Function PrincipleEmitter + Receiver

Available functionsAutomatic Restart

DescriptionCompact standard

FunctionsArm protection res. 50 mm

Safety parameters

TypeType 2 safety light curtain (A)

SIL1

SILCL1

PLc

MTTFd273 years

Dcavg97,50%

SFF98,40%

Outputs

Output type2 x PNP-NO (OSSD safety output)

Response time13,8 ms

Electrical data

Operating Voltage24 Vdc ± 20%

Load current≤ 500mA each output

EmissionInfrared LED (850 nm wavelength)

Interference to external lightAccording to IEC 61496-2

Power Consumption - Receiver≤ 3W (no load)

Power Consumption - Emitter≤ 2W

Capacitive Load≥ 2,2µF

Cabel Length (Power Supply/Output)≤ 50m

Mechanical data

Dimensions33x37x833

MaterialPainted aluminum / PMMA / PC MAKROLON

ConnectionsM12-4 poles (emitter) M12-5 poles (receiver)

Storage temperature-25…+ 70°C

VibrationsWidth 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6)

Shocks16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)

Test/Approvals

ApprovalsCE, cULus, TÜV

EMC compatibilityAccording to 2014/30/EU Directive

Accessories

Supplied AccessoriesStandard "L" Mounting Brackets: 4 pcs kit

Generical Data

Dimensions32,3x36,9x833,2 mm

Operating Temperature-10…+55°C

Humidity15 … 95 % (no condensation)

Mechanical ProtectionIP65
