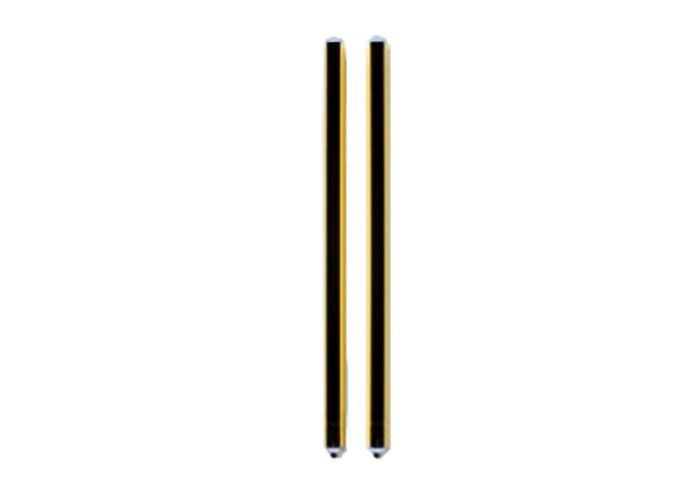

Datasensing SG2-30-045-OO-W - SG2 MUTING safety light curtain type 2 res=30 mm h=450 mm edm man/auto muting

Детайлна информация

• No dead zone
• Pigtail cable with M12 connector
• Up to 20m operating range and 1800m protected height
• Compact dimensions (35 x 41 mm section)
• Anti-interference coding
• Integrated Muting function
• Configurable with Pushbuttons

Detection properties

Nominal sensing distance0,2 … 20 m

Resolution30mm

controlled height450 mm

number of rays24

Sensitivity adjustmentTeach-in

Effective Aperture Angle≤ ±5°

Application

Function PrincipleEmitter + Receiver

Available functionsManual/Automatic Restart, EDM, Range Reduction (on TX), Muting, Override

DescriptionCompact no-dead-zone

FunctionsHand protection res. 30 mm muting

Safety parameters

TypeType 2 safety light curtain (A/M)

SIL1

SILCL1

PLc

MTTFd273 years

Dcavg97,50%

SFF98,40%

Outputs

Output type2 x PNP-NO (OSSD safety output) with EDM

Response time13,9 ms

Electrical data

Operating Voltage24 Vdc ± 20%

Load current≤ 500mA each output

EmissionInfrared LED (950 nm wavelength)

Interference to external lightAccording to IEC 61496-2

Power Consumption - Receiver≤ 5W (no load)

Power Consumption - Emitter≤ 3W

Capacitive Load≥ 2,2µF

Cabel Length (Power Supply/Output)≤ 50m

Mechanical data

Dimensions35x41x456

MaterialPainted aluminum / PMMA / PBT Valox 508 / PC LEXAN

ConnectionsM12-5 poles pig-tail (emitter) M12-12 poles + M12-5poles pig-tails (receiver)

Storage temperature-25…+ 70°C

VibrationsWidth 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6)

Shocks16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)

Test/Approvals

ApprovalsCE, cULus, TÜV

EMC compatibilityAccording to 2014/30/EU Directive

Accessories

Supplied AccessoriesStandard "L" Mounting Brackets: 4 pcs kit

Generical Data

Dimensions35x40,75x456,3 mm

Operating Temperature0…+50°C

Humidity15 … 95 % (no condensation)

Mechanical ProtectionIP65
